120V High Side Low Side MOSFET Driver (UCC27200) Slide 5

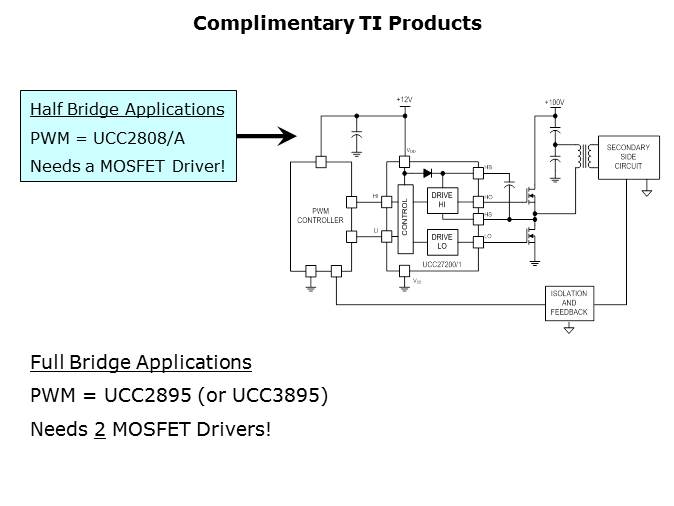

The UCC27200 can be used with the push-pull half-bridge and full-bridge topologies. The UCC27200 paired with the UCC2808-x push-pull controller can be easily used in both the half and full-bridge topologies. Also, the UCC27200 is an ideal companion to the UCC2895 or UCC3895, phase shifted full-bridge controllers for high end power supply applications. Additionally, the UCC27200 is an ideal compliment for the UCC2891 through UCC2894 and UCC2897 family of active clamp controllers.

PTM Published on: 2011-11-08
