LT8705-Slide9

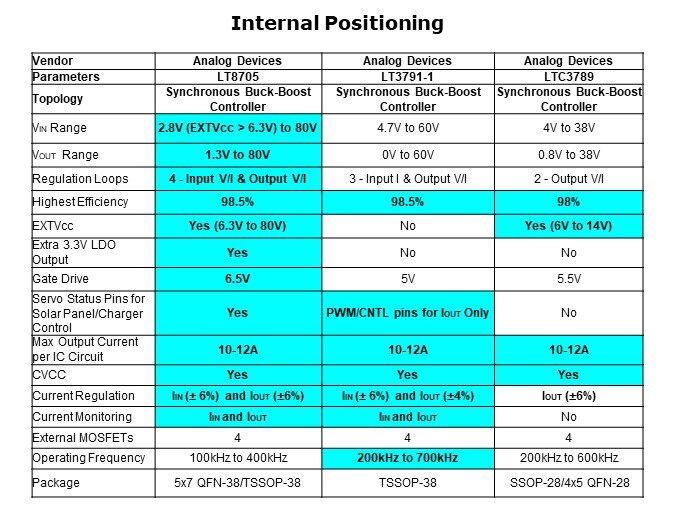

Shown here are the internal positioning of the LT8705 relative to Analog Device’s LT3791-1 and LTC3789. The LT8705 has several advantages over these parts as highlighted in blue and include a higher input and output voltage capability, four regulation loops, servo status pins and a 3.3V LDO output.

PTM Published on: 2013-06-17
