LT8705-Slide8

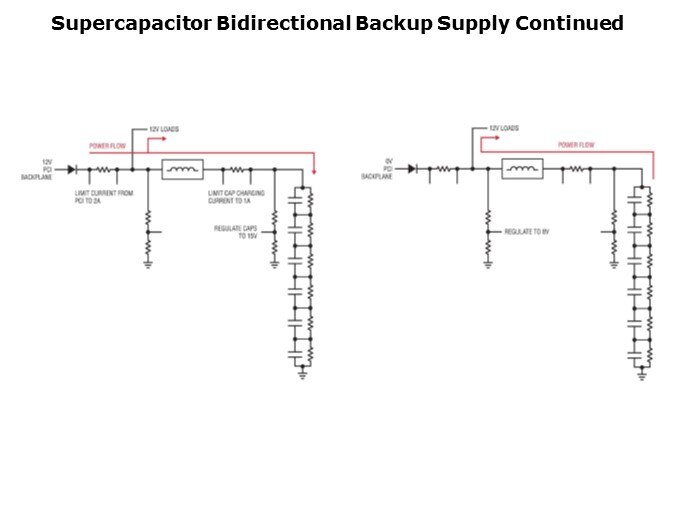

This simplified schematic shown here is how the LT8705 can be used as a bidirectional power supply. When the 12V PCI Backplane is present, the 12V loads are powered from the input and the supercaps are being charged. When the 12V PCI power is removed, the 12V loads are powered by the supercaps.
