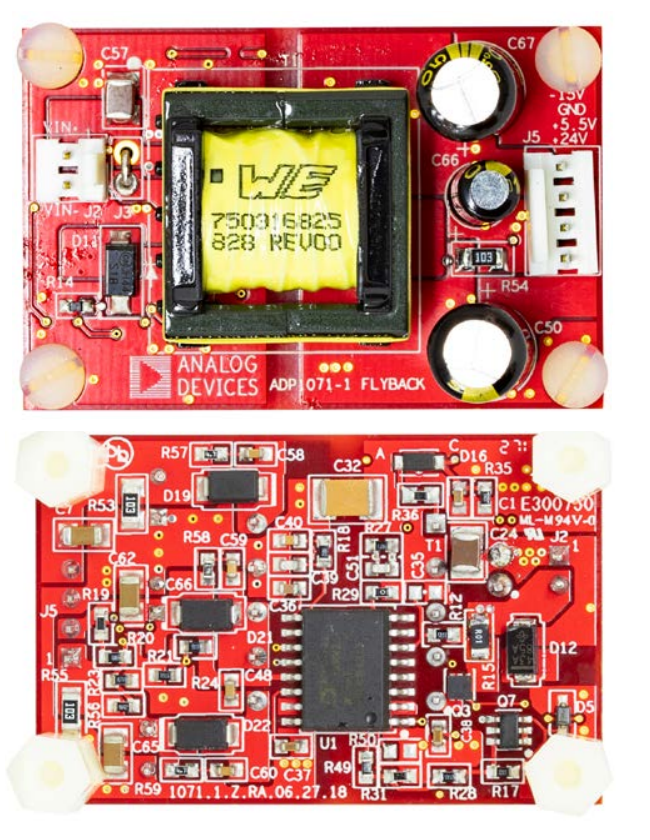

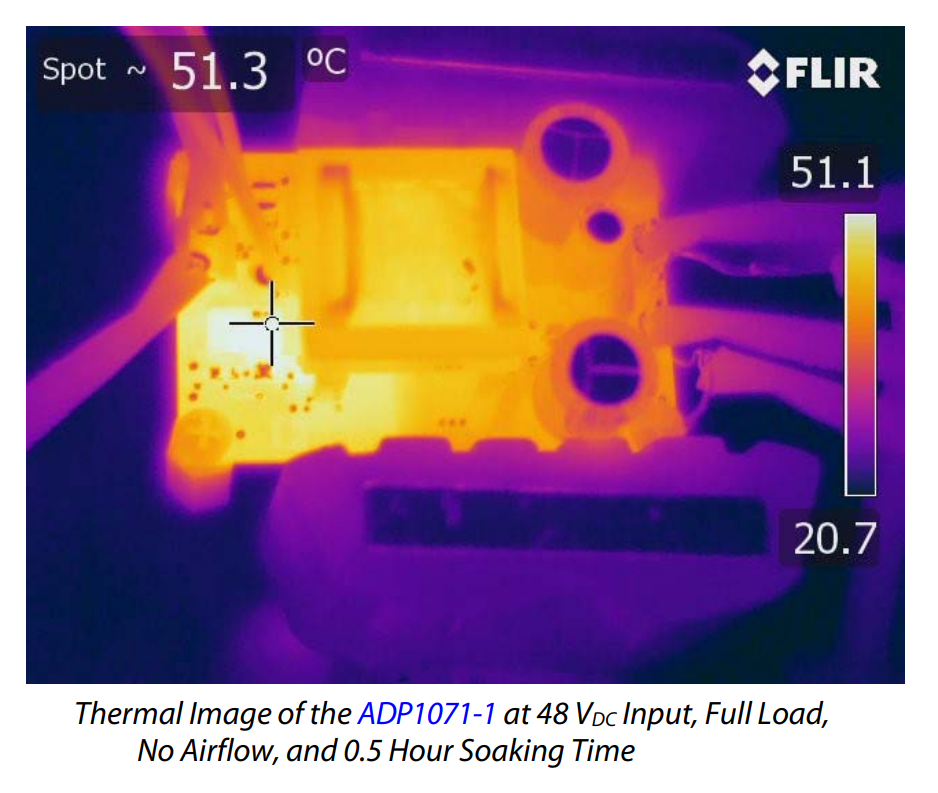

The ADP1071-1EVALZ allows users to evaluate the ADP1071-1 in flyback topology.
The evaluation board is set up to act as an isolated power supply solution that incorporates three output voltages (+5.5 V, +24 V, and −15 V) at a total rated power of 15 W. The evaluation board also provides 5 kV isolation in compact form factor, making it suitable for industrial applications, which usually have a variety of voltage rails.
| Manufacturer | Analog Devices Inc. |
|---|---|
| Category | AC/DC and DC/DC Conversion |
| Sub-Category | DC/DC SMPS - Multi Output |
| Eval Board Part Number | ADP1071-1EVALZ-ND |
| Eval Board Supplier | Analog Devices Inc. |
| Eval Board |
Normally In Stock
|
| Topology |
Step Down
|
| Outputs and Type |
3 Isolated
|

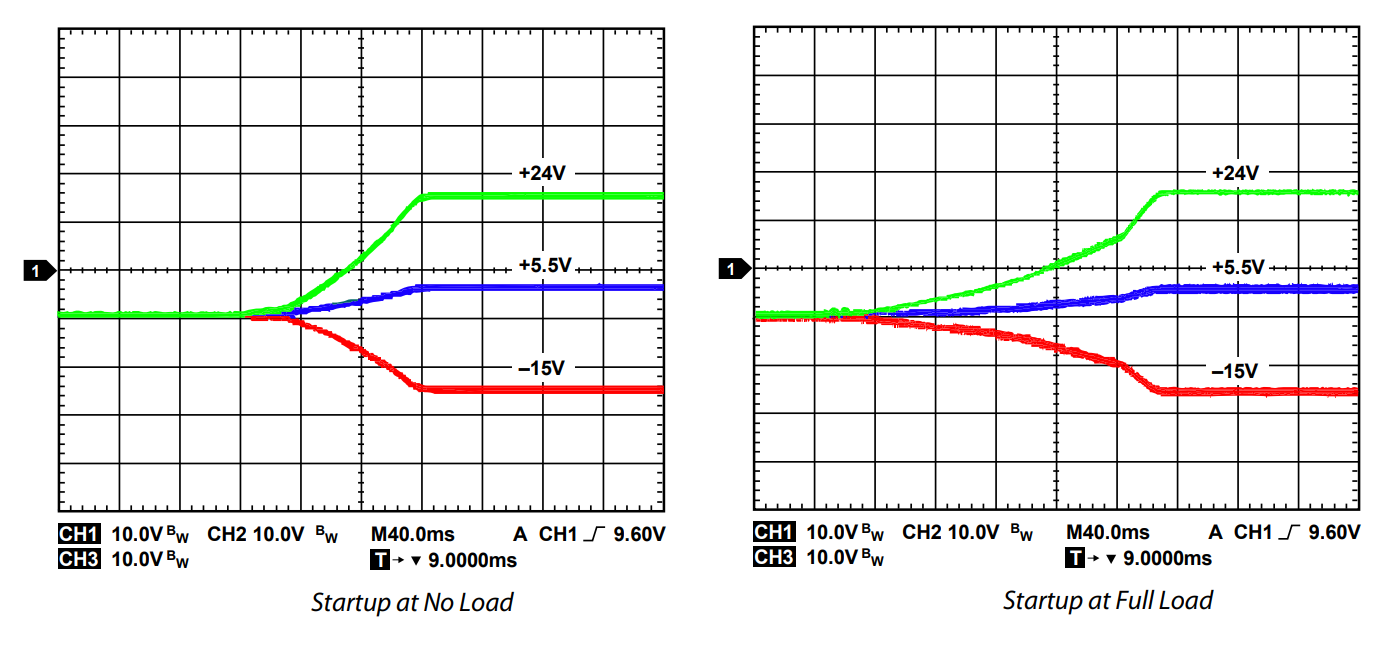

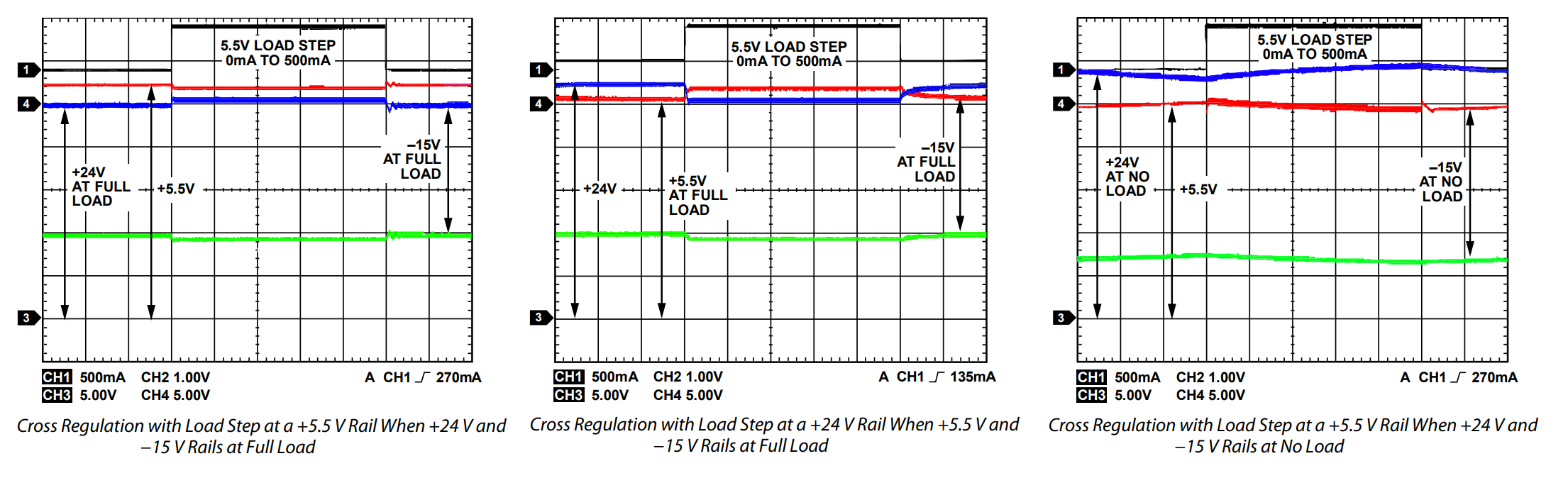

| Voltage Out: Highest Current First |
5.5V, 24V, -15V
|
| Current Out |
500mA, 400mA, 200mA
|
| Voltage In |
18 ~ 32 V
|
| Efficiency @ Conditions |
>85%, 24V in, 5.5V @ 500 mA
>85%, 24V in, 24V @ 400 mA >85%, 24V in, -15V @ 200 mA |
| Voltage Out Range |
- Fixed
|
| Features |
Light Load Mode
Over Voltage Protection Short Circuit Protection Soft Start Synchronizable Thermal Protection Under Voltage Protection, Brown-Out |
| Switching Frequency |
50 kHz
|
| Standby Current [Typical] |
- Not Given
|
| Quiescent Current [Typical] |
3.8 mA
|
| Component Count + Extras |
60 + 2
|
| Internal Switch |
No
|
| Design Author |
Analog Devices
|
| Application / Target Market |
PoE, Power Over Ethernet
Power: Industrial Power Servers Telecom |
| Standby Current [Maximum] |
160 µA
|
| Quiescent Current [Maximum] |
6.8 mA
|
| Main I.C. Base Part |
ADP1071-1
|
| Date Created By Author | 2018-08 |
| Date Added To Library | 2019-08 |
