            NCV78514: Advanced Automotive LED Driver

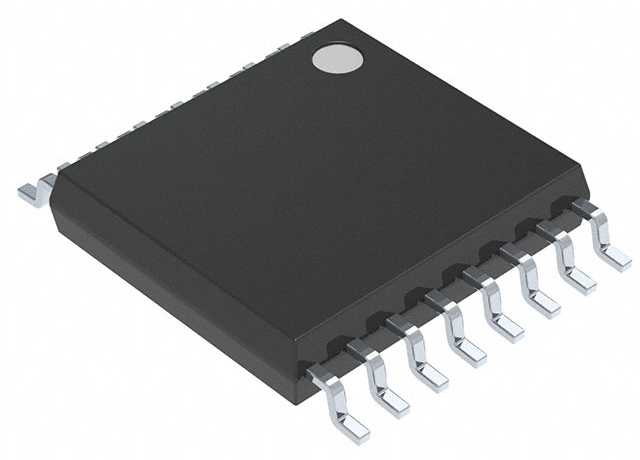

                    The NCV78514 is a high-performance, intelligent, single-channel, H-bridge LED driver by onsemi


The onsemi NCV78514 is a cutting-edge LED driver designed specifically for automotive applications. This intelligent single-channel H-bridge driver integrates a synchronous buck and an external asynchronous boost topology, making it highly versatile for various LED loads. With an input voltage range of 5 V to 21 V and an output voltage capability of up to 60 V, the NCV78514 can drive LED currents up to 1.5 A. It is optimized for MCU-less setups, featuring smart functionalities such as input voltage and temperature-based derating, diagnostic and error handling, and LED current dimming. The NCV78514 is AEC-Q100 qualified, ensuring high reliability and performance in automotive environments. This driver is ideal for applications requiring robust and efficient LED control, offering a comprehensive solution for modern automotive lighting systems.

Features

Intelligent single-channel H-bridge topology
Integrated synchronous buck and external asynchronous boost
Input voltage range: 5 V to 21 V
Output voltage range: up to 60 V
LED current: up to 1.5 A
Smart derating based on input voltage and temperature
Diagnostic and error handling
LED current dimming

Fixed switching frequency at 400 kHz
Warm start management below 9 V
Withstands load dump up to 45 V
External programmable current: 200 mA to 1500 mA
Pulse width modulation (PWM) from 80 Hz to 600 Hz
Spread spectrum for EMI reduction
AEC-Q100 qualified and PPAP capable

Applications

Automotive headlights
Fog lamps
Daytime running lights (DRL)
Cornering lights
Logo projection
Logo lighting
Interior ambient lighting
Rear combination lamps

Brake lights
Turn signals
Reverse lights
License plate lights
Dashboard illumination
Instrument cluster lighting
Glove box lighting
