The Freedom development platform is a set of software and hardware tools for evaluation and development. It is ideal for rapid prototyping of microcontroller-based applications.

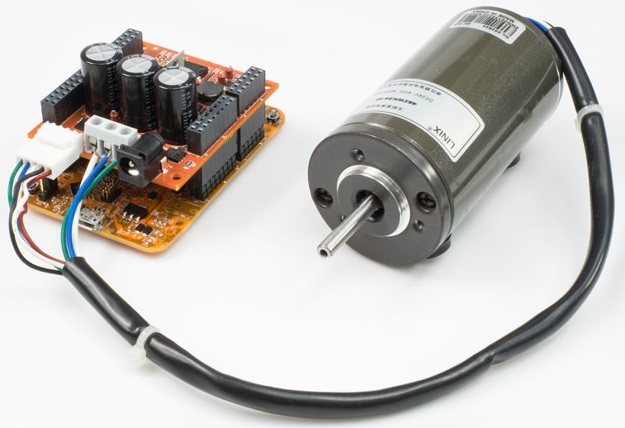

The FRDM-MC-LVPMSM low-voltage evaluation board, in a shield form factor, effectively turns a Freedom development platform into a complete motor control reference design, compatible with existing Freedom development platforms, FRDM-KV31F and FRDM-KV10Z, and the low cost motor FRDM-MCLVMTR.

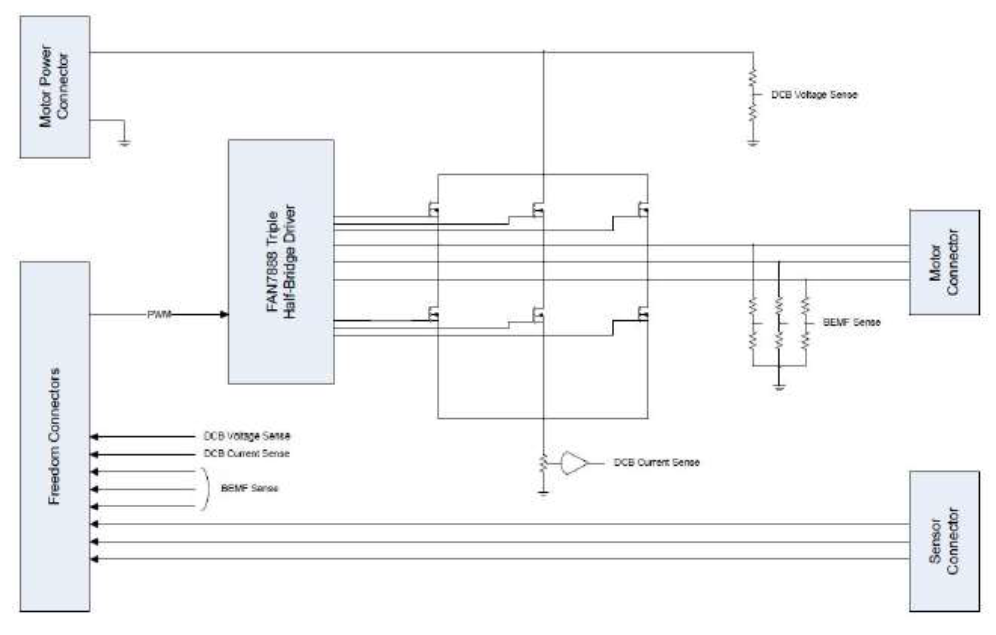

The FRDM-MC-LVPMSM shield board implements a 3-phase Permanent Magnet Synchronous Motor (PMSM) interface platform that adds Field Oriented Control (FOC) motor control capabilities, such as rotational or linear motion, to your design applications.
| Manufacturer | NXP USA Inc. |
|---|---|
| Category | Motor Control |
| Eval Board Part Number | FRDM-MC-LVPMSM-ND |
| Eval Board Supplier | NXP USA Inc. |
| Eval Board |
Normally In Stock
|

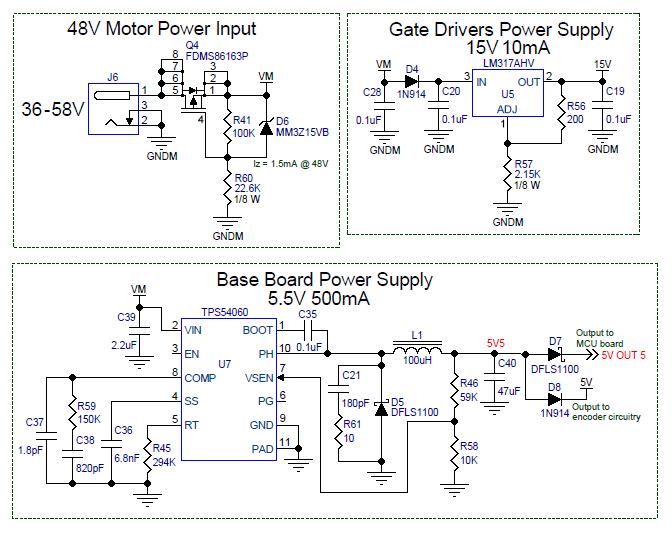

| Voltage In |
24 ~ 48 V
|
| Number of Motors and Type |
1, 3-Ph PMSM Motor
|
| Power / Current Out |
5 A
|
| Features |
Hall Input
Reverse Polarity Protection Under Voltage Protection, Brown-Out |
| Component Count + Extras |
118 + 7
|
| Application / Target Market |
Motor Control
|
| Design Author |
NXP
|
| Main I.C. Base Part |
FAN7888
|
| Date Created By Author | 2016-02 |
| Date Added To Library | 2024-01 |
