HP24510.A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HP24510.A

DigiKey Part Number
931-HP24510.A-ND
Manufacturer
Taoglas Limited
Manufacturer Product Number
HP24510.A
Description
DUAL FEED GNSS L1/L2 STACKED PAT
Manufacturer Standard Lead Time
10 Weeks
Customer Reference
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch Solder Surface Mount
Product Attributes
Type
Description
Select All
Category
Manufacturer
Taoglas Limited
Series
-
Packaging
Bulk
Part Status
Active
RF Family/Standard
Navigation
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency (Center/Band)
1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz
Frequency Range
1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz
Antenna Type
Ceramic Patch
Number of Bands
6
VSWR
-
Return Loss
-
Gain
3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi
Features
-
Termination
Solder
Ingress Protection
-
Mounting Type
Surface Mount
Height (Max)
0.394" (10.00mm)
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 177
Check for Additional Incoming Stock
Quantity
All prices are in EUR
Bulk
QuantityUnit PriceExt Price
113,70000 €13,70 €
1011,13600 €111,36 €
969,74927 €935,93 €
1929,19385 €1.765,22 €
2888,65010 €2.491,23 €
5768,01068 €4.614,15 €
Manufacturers Standard Package
Unit Price without VAT:13,70000 €
Unit Price with VAT:16,98800 €
You May Also Be Interested InSee All
3 Items
2136020001

2136020001

ANTENNA GPS L1/L2 STACKED

Molex

10,21000 €
HP5354.A

HP5354.A

HIGH PRECISION GNSS L1/L5 PATCH

Taoglas Limited

11,11000 €

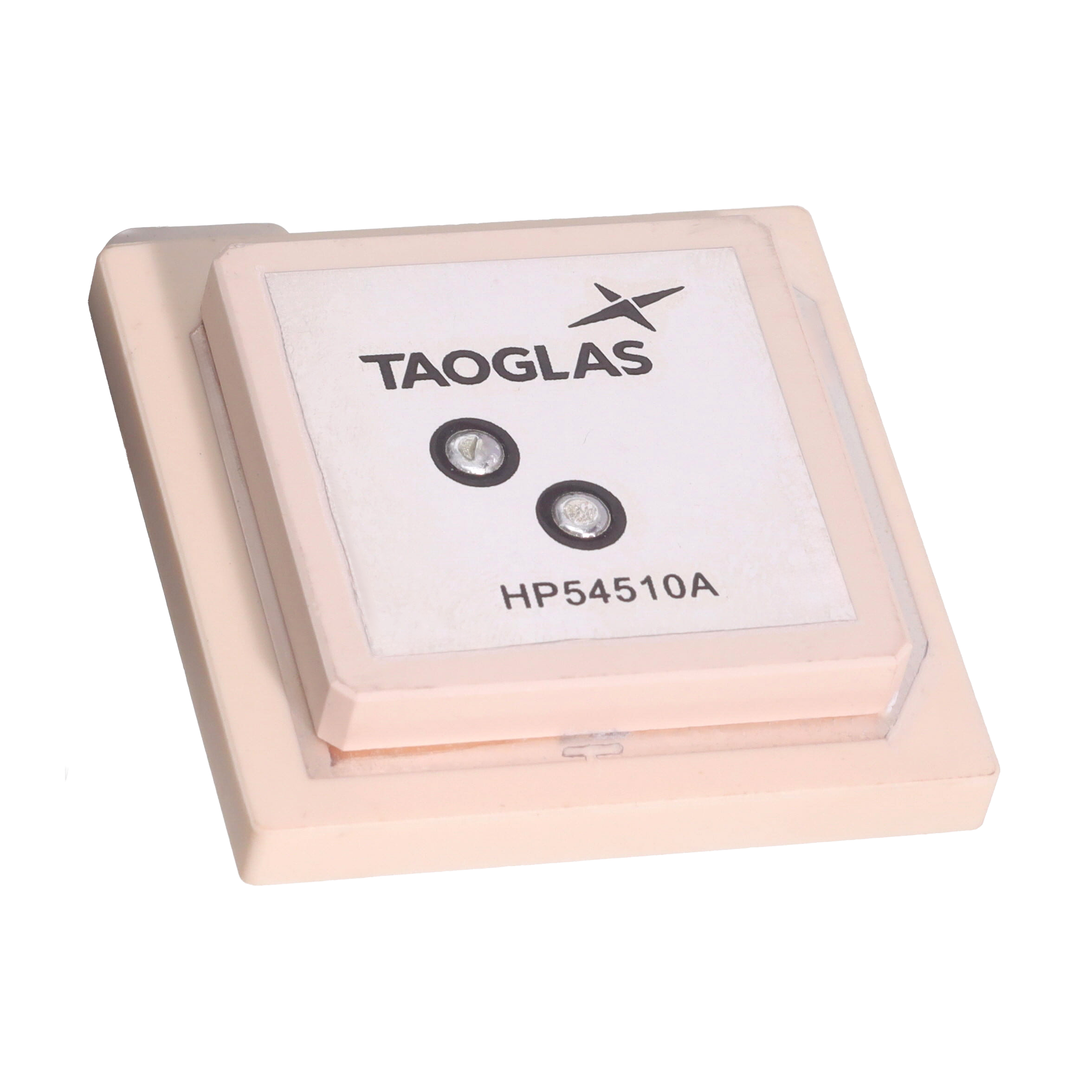

HP54510.A
