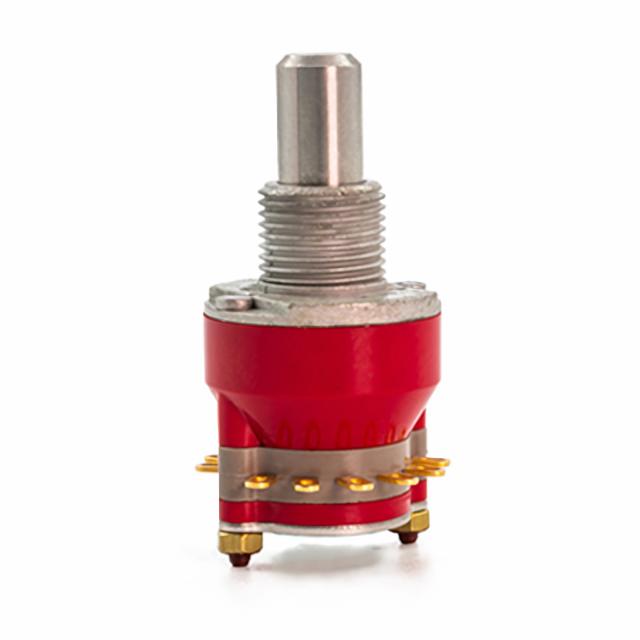

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
71BD30-01-1-AJN | |
|---|---|
DigiKey Part Number | GH7101-ND |
Manufacturer | |
Manufacturer Product Number | 71BD30-01-1-AJN |
Description | SWITCH ROTARY 2-12POS 250MA 115V |
Manufacturer Standard Lead Time | 12 Weeks |
Customer Reference | |
Detailed Description | Rotary Switch 2 ~ 12 Position SP12T 250mA (AC/DC) 115 VAC Panel Mount |
Datasheet | Datasheet |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Grayhill Inc. | |
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Number of Positions | 2 ~ 12 | |
Index Stops | Adjustable | |
Number of Decks | 1 | |
Number of Poles per Deck | 1 | |
Circuit per Deck | SP12T | |
Contact Timing | Non-Shorting (BBM) | |
Current Rating (Amps) | 250mA (AC/DC) | |
Voltage Rating - AC | 115 V | |
Voltage Rating - DC | 30 V | |
Actuator Type | Flatted (6.35mm Dia) | |
Actuator Length | 9.53mm | |
Angle of Throw | 30° | |
Contact Material | Silver Alloy | |
Contact Finish | - | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Features | - | |
Depth Behind Panel | 19.33mm | |
Panel Cutout Dimensions | - | |
Base Product Number |
In-Stock: 147
Check for Additional Incoming Stock
Quantity
All prices are in EUR
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | 25,25000 € | 25,25 € |
| 5 | 21,68000 € | 108,40 € |
| 10 | 20,29800 € | 202,98 € |
| 25 | 18,59920 € | 464,98 € |
| 50 | 17,40320 € | 870,16 € |
| 100 | 16,27850 € | 1.627,85 € |
| 250 | 14,89292 € | 3.723,23 € |
| 500 | 14,58260 € | 7.291,30 € |
| Unit Price without VAT: | 25,25000 € |
|---|---|
| Unit Price with VAT: | 31,31000 € |
