            MCMWF090N06LKHE3-TP AEC-Q101 Qualified 60 V N-Ch MOSFET in DFN2020-6SWF Package
                    The Micro Commercial Components MCMWF090N06LKHE3-TP 90 mΩ, 8.1 A  N-channel MOSFET is ideal for low to medium power automotive applications

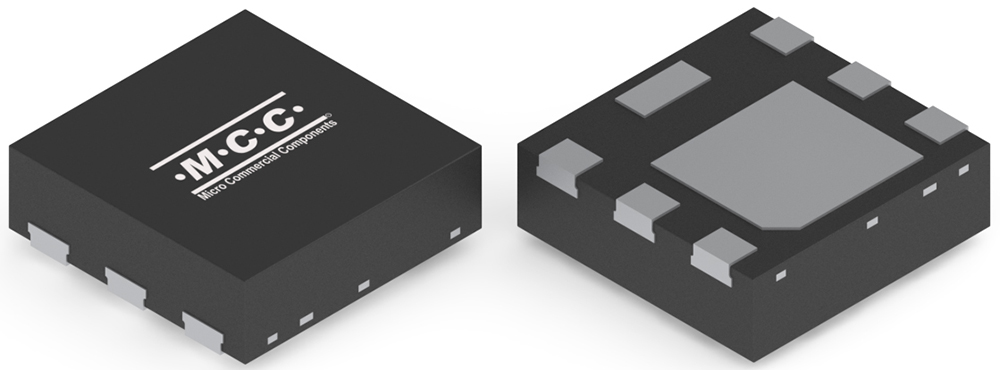

The Micro Commercial Components AEC-Q101 qualified MCMWF090N06LKHE3-TP N-channel MOSFET is available in the miniature yet reliable DFN2020-6SWF package. This automotive-grade device is engineered for the most demanding applications, combining a low on-resistance of 90 mΩ with a massive 8.1 A continuous current rating, delivering unmatched current handling, superior thermal performance, and ultimate reliability for 12 V automotive systems.

The DFN2020-6SWF package enables designers to achieve maximum component density and reliable performance in the smallest possible footprint. Its side wettable flanks technology increases automated optical inspection’s (AOI's) reliability, thus increasing assembly quality and yield.

Features

AEC-Q101 qualified to ensure automotive-grade reliability and robustness
60 V drain-source voltage (V_DS) rating offers ample margin for handling voltage spikes and ringings in automotive applications that operate from the standard 12 V system
Lower thermal resistance of +85°C/W junction to ambient allows it to efficiently transfer heat to the PCB enabling stable operation

Low R_DS(ON) of 90 mΩ (max) at V_GS = 10 V, which minimizes conduction losses, reduces heat generation, and improves overall system efficiency
Trench MV MOSFET technology optimized for low on-resistance and high switching speed
RoHS and halogen-free aligning with global environmental standards and green manufacturing initiatives

Applications

BMS
ADAS
Lighting controls

Body electronics and control modules (BCM) in EV
DC/DC converters
Load switches in infotainment head units
